Core product matrix and features
We provide a full range of solutions for coated metal sheets certified by global standards, covering cold-rolled substrates, hot-dip galvanized (GI), galvanized aluminum (Galvalume), zinc aluminum magnesium (ZAM) and high-strength roof panels, meeting the diversified needs from infrastructure to high-end manufacturing:

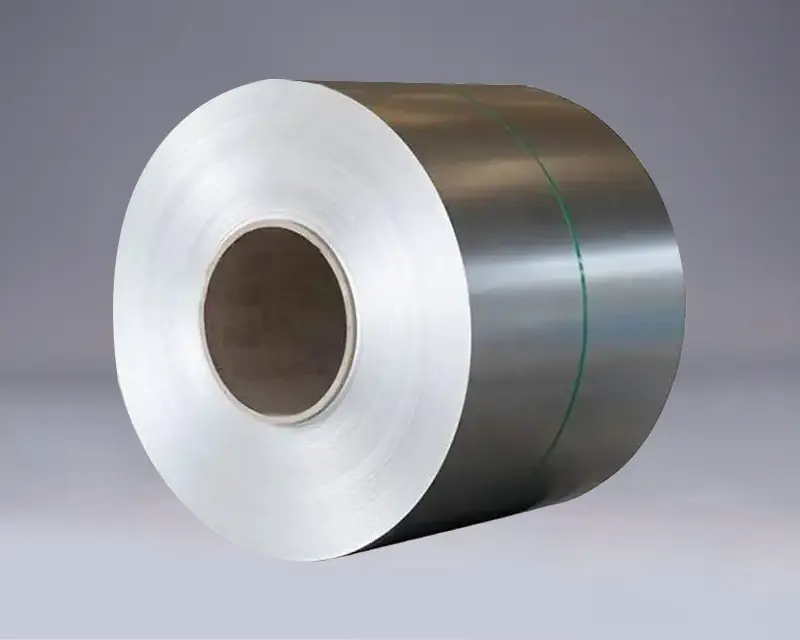

1. Hot-dip galvanized steel coil (GI/SGCC)
Material standards: DX51D+Z80-Z275 (EN 10346), SGCC (JIS G3302)
Coating advantages: zinc layer weight 60-275g/m², salt spray corrosion resistance ≥500 hours (Z275), suitable for general anti-corrosion scenarios.
Typical applications: storage shelves, ventilation ducts, agricultural equipment housings.
2. Galvalume steel coil (AZ150/Galvalume)
Material standards: ASTM A792 AZ150, AS1397 G550
Coating characteristics: 55% aluminum-zinc alloy coating, heat resistance up to 315℃, corrosion resistance 3-6 times that of ordinary galvanizing, and service life of more than 25 years.
Typical applications: industrial plant roofs, color-coated substrates, and automobile exhaust pipes.
3. Zinc-aluminum-magnesium alloy steel coil (ZAM275)
Technological breakthrough: Zn-Al-Mg coating (magnesium content 1.5%-3%), significant self-healing properties, and red rust resistance time of more than 2000 hours.
Implementation standards: JIS G3321 ZAM275, Q/BQB 440-2018
Typical applications: photovoltaic brackets, coastal building enclosures, and cold chain logistics equipment.
4. High-strength roof panels (G550/G350)
Mechanical properties: yield strength 350-550MPa, thickness 0.4-1.2mm, lightweight and wind-resistant (in compliance with AS/NZS 2728).
Surface treatment: PE/PVDF coating can be customized to support decorative effects such as imitation stone grain and wood grain.
Four core competitive advantages
✅ Full product category coverage
From cold-rolled substrates (DC01-DC06) to finished coated products (GI/AZ/ZAM), thickness 0.15-3.0mm, width 600-1500mm, support striping, shearing, and lamination processing.
✅ Strict quality control system
Coating uniformity detection (XRF thickness gauge accuracy ±1μm)
Mechanical properties test (universal testing machine + digital imaging system)
Provide SGS/BV certified 3.1 material report
✅ Fast delivery capability
Standing inventory of 20,000 tons, supporting small batch trial orders (minimum order of 1 ton)
Five major domestic storage centers, 72-hour express delivery
✅ Scenario-based technology empowerment
Free of charge:
Coating selection guide (matching coating types according to corrosion environment)
Processing technology optimization plan (reducing stamping cracking rate)
Full life cycle cost calculation model
Industry solutions and cases
|
Fields |
Recommended products |
Success stories |
|
Green buildings |
G550 galvanized roof panels + PVDF coating |
An international exhibition center project, cost reduction of 18%, service life increased to 30 years |
|
New energy vehicles |
ZAM275 battery tray substrate |
Cooperating with leading car companies, reducing weight by 15% and passing 2000 hours of salt spray test |
|
Smart home appliances |
SGCC+PE laminated board (antibacterial coating) |
High-end refrigerator panel supplier, surface scratch rate reduced by 90% |
Technical parameter comparison table
|
Category |
Coating Type |
Thickness Range |
Coating Weight |
Corrosion Resistance |
|
Hot-dip Galvanizing (GI) |
Pure Zinc |
0.3-3.0mm |
60-275g/m² |
500-1500 hours |
|
Alu-zinc (AZ150) |
55%Al-Zn |
0.4-2.0mm |
150g/m² |
2500 hours (C5 environment) |
|
Zinc aluminum magnesium (ZAM275) |
Zn-Al-Mg |
0.5-2.5mm |
275g/m² |
3000 hours+ |
|
High-strength roof board (G550) |
Alu-zinc + coating |
0.4-1.2mm |
150g/m²+20μm PE |
Wind pressure resistance ≥ 5kPa |
